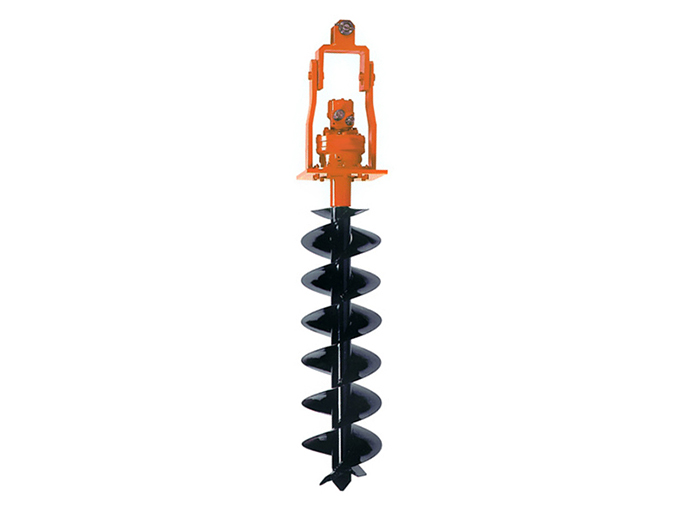

Auger Auger T1 – hydraulic system 30 l / min pressure 250 bar – engine weight kg 90 Auger T2 – hydraulic system 50 l / min pressure 250 bar – engine weight kg 100

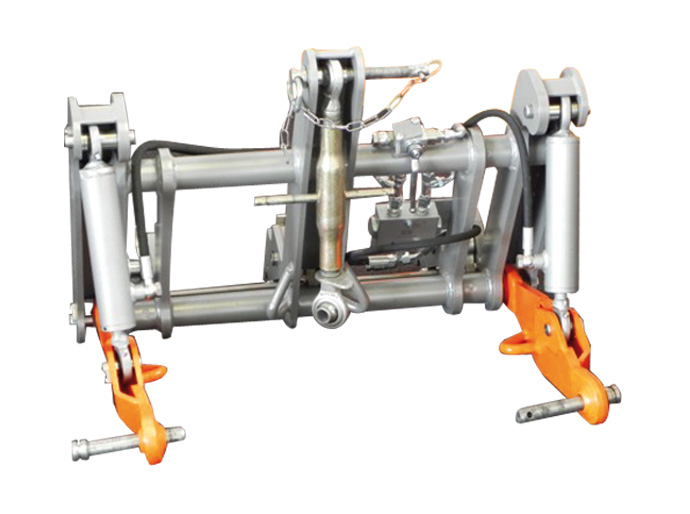

Back 3 point lifter mm 800 – lifting capacity Kg 350(*) – weight kg 76 (*) the machine needs hydraulic rear outlet and 3 point set-up.

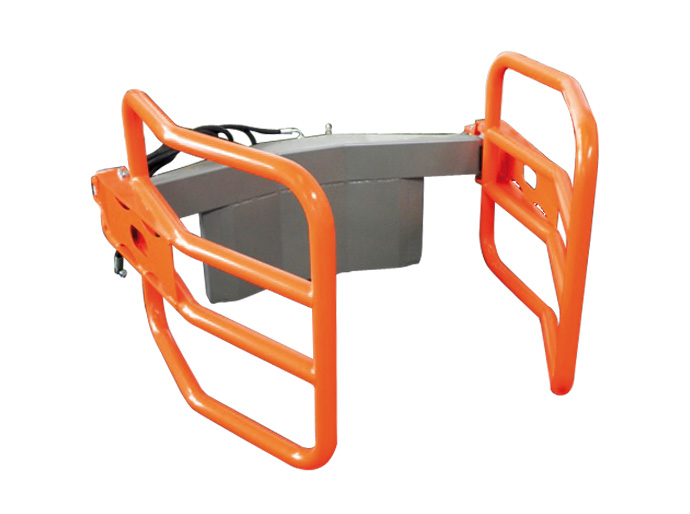

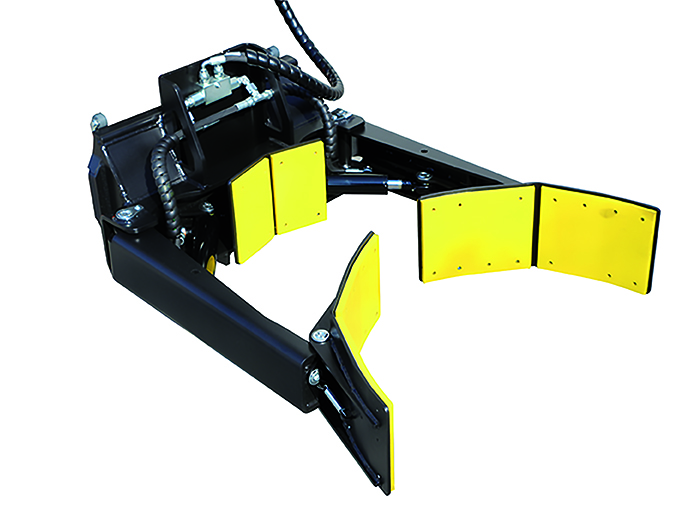

Bale clamp Wrapped bale clamp (Ø min. mm 1200 / max mm 1500) – weight kg 135 Bale clamp (Ø min. mm 1200 / max mm 1500) – weight kg 148
Bucket – 4 in 1 mm 1300 – volume l 197 – weight kg 233 mm 1504 – volume l 230 – weight kg 255

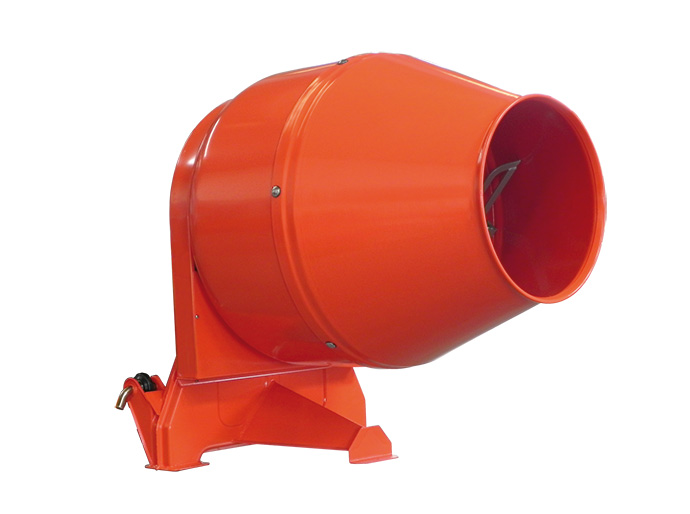

Concrete mixer Volume l 250 – weight kg 100

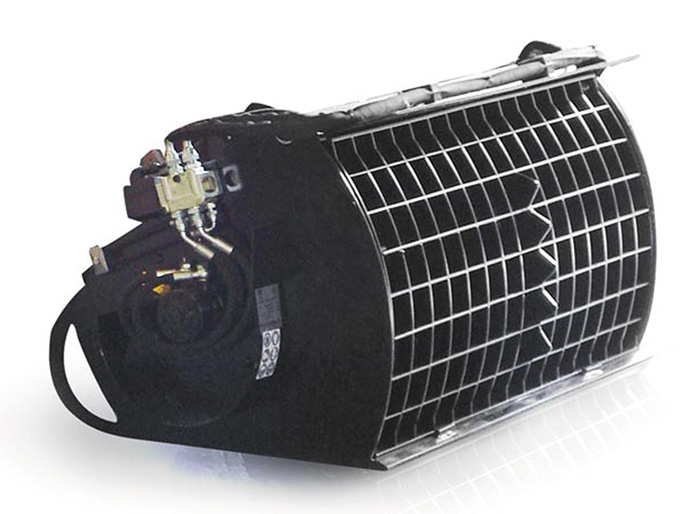

Concrete mixing bucket mm 1500 – volume l 200 – weight kg 222 (*) The machine needs counter-weights.

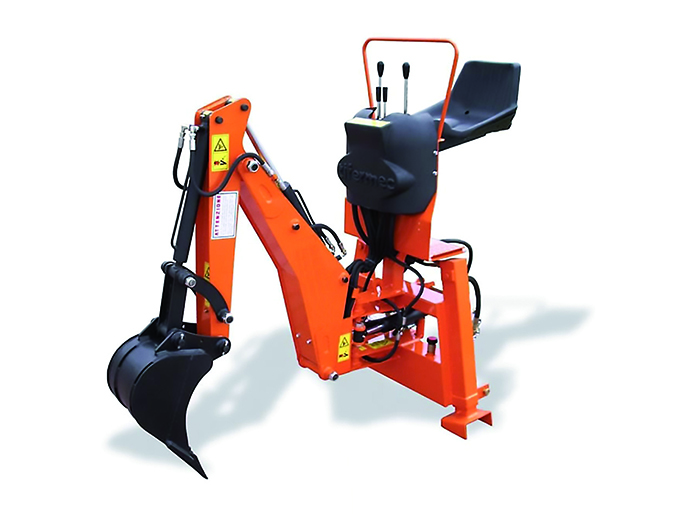

Excavator mm 300 – volume l 14 – weight kg 250 Range of action 2000 mm Rotation 180°

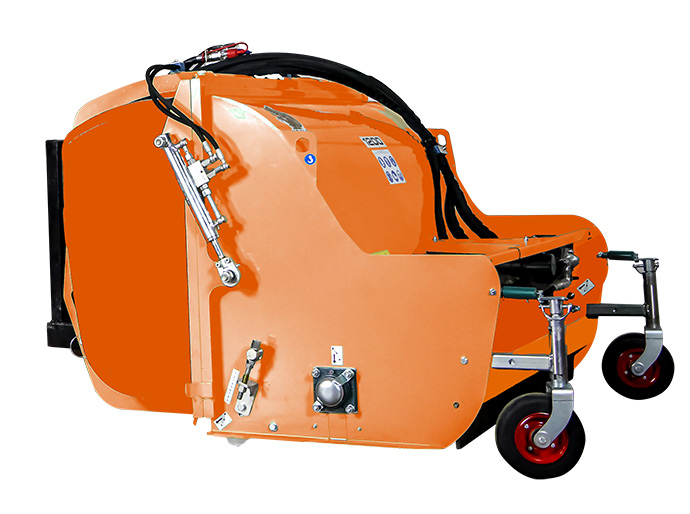

Flail mower with collector mm 1200 – volume l 700 – weight kg 330
Floating rotary broom Swiveling mm 1300 (*) – weight kg 160 Swiveling mm 1600 (*) – weight kg 192 (*) The machine needs front auxiliary electric outlet 165W

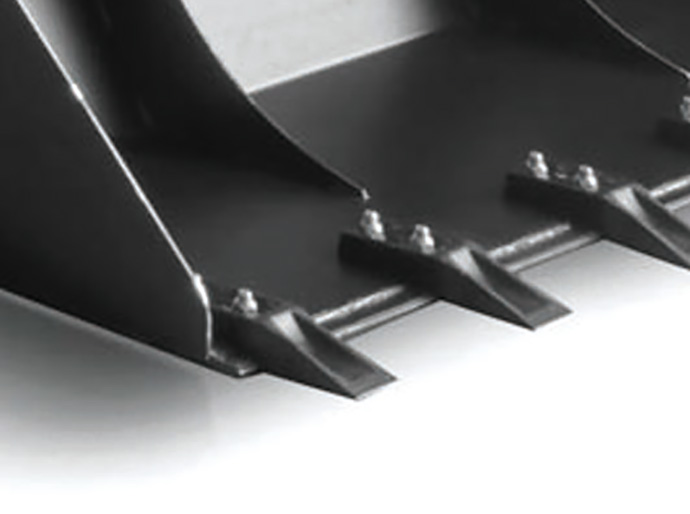

Forged teeth for sand bucket 6 pcs. for sand bucket mm 1200 8 pcs. for sand bucket mm 1500
Forged teeth for bucket 4 in 1 6 pcs. for bucket 4 in 1 mm 1300 8 pcs. for bucket 4 in 1 mm 1504

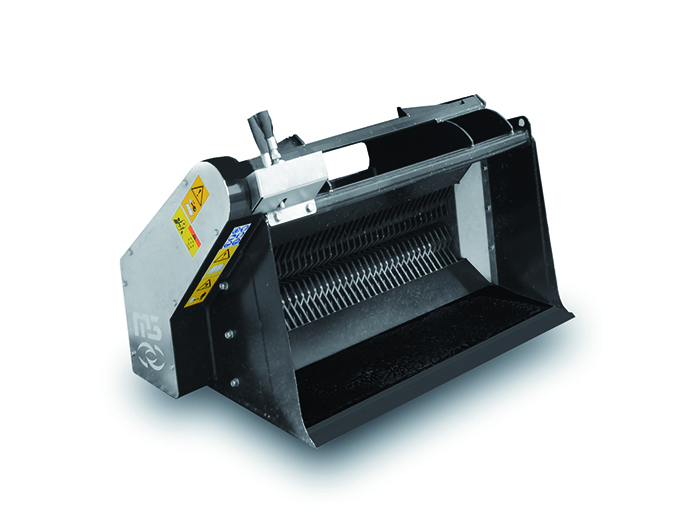

Front screening bucket mm 1200 – volume l 200 Pressure 180 bar Weight kg 350 (*) The machine needs counter-weights
Grabbing tool Ø min. mm 320 / Ø max mm 1000 Weight kg 85

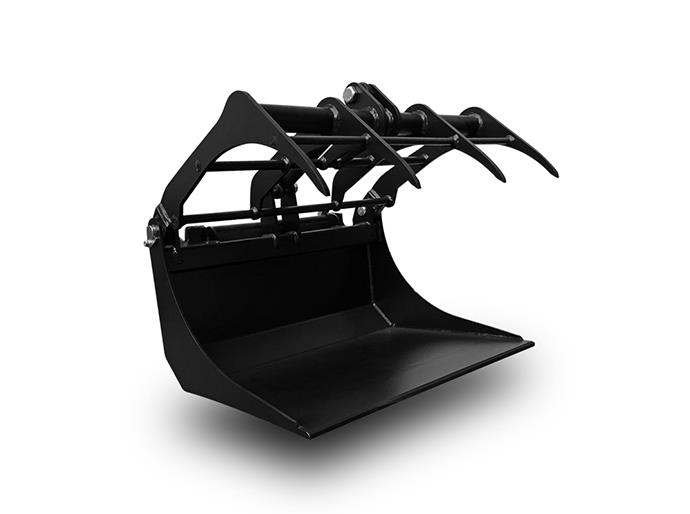

Grapple bucket mm 1100 – weight kg 180 mm 1300 – weight kg 200 (with teeth)

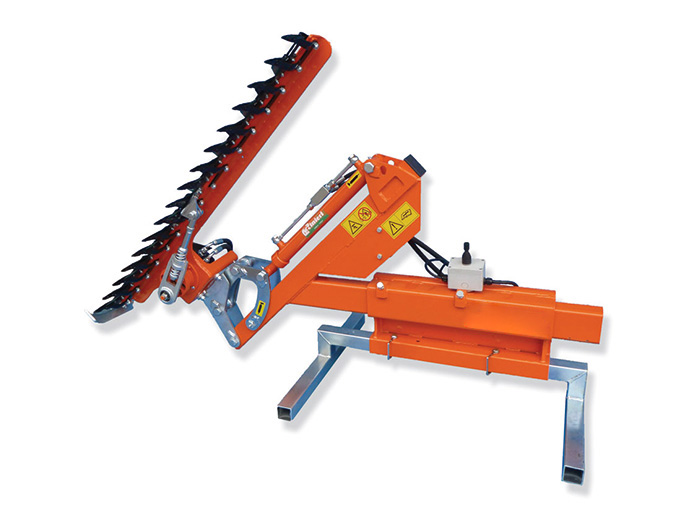

Hedge cutter bar Hedge cutter bar (*) mm 1600 – arm mm 1200 – tilt angle 270° – weight kg 180 mm 1900 – arm mm 1500 – tilt angle 270° – weight kg 200

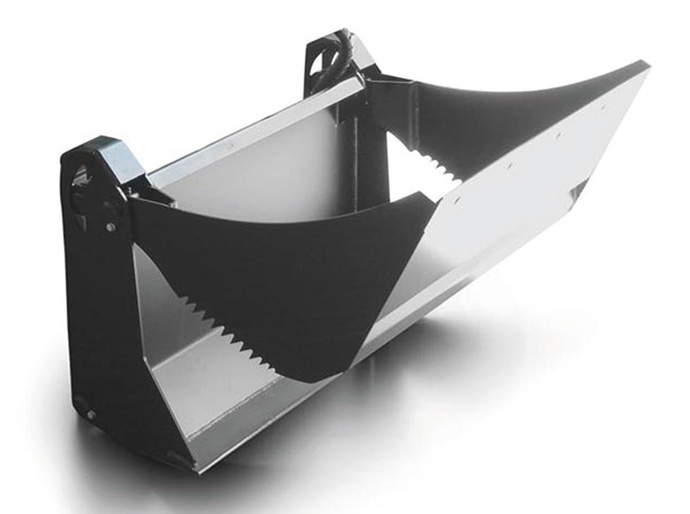

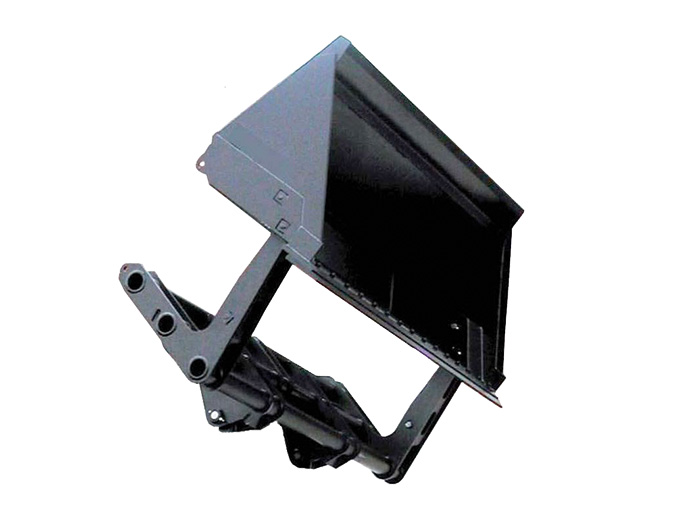

High tipping bucket mm 1208 – volume l 179 – weight kg 145

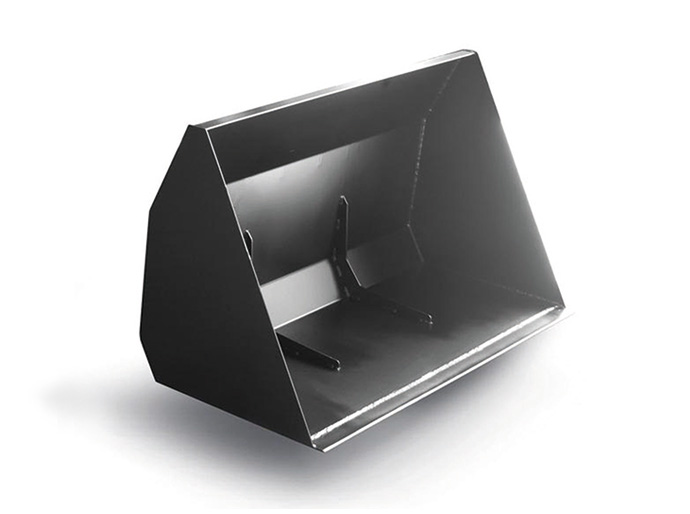

High volume bucket mm 1208 – volume l 265 – weight kg 83 mm 1508 – volume l 330 – weight kg 97

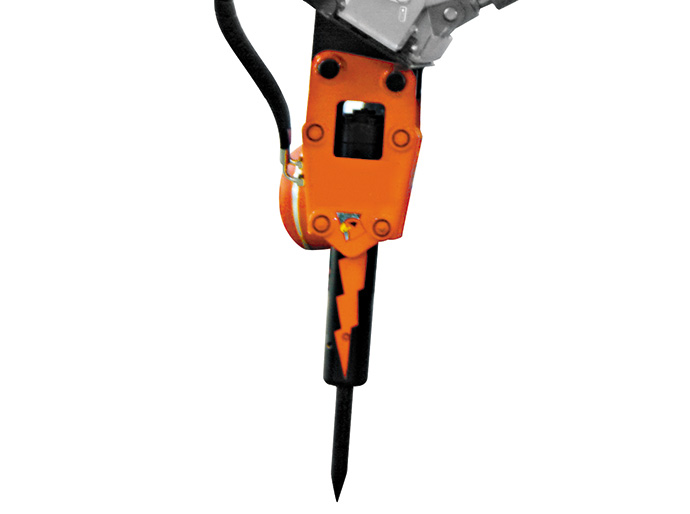

Hydraulic hammer Engine kg 60 – hydraulic system 15–30 l/min Engine kg 90 – hydraulic system 20–40 l/min For both models, the round drill, chisel drill, and asphalt drill are available.

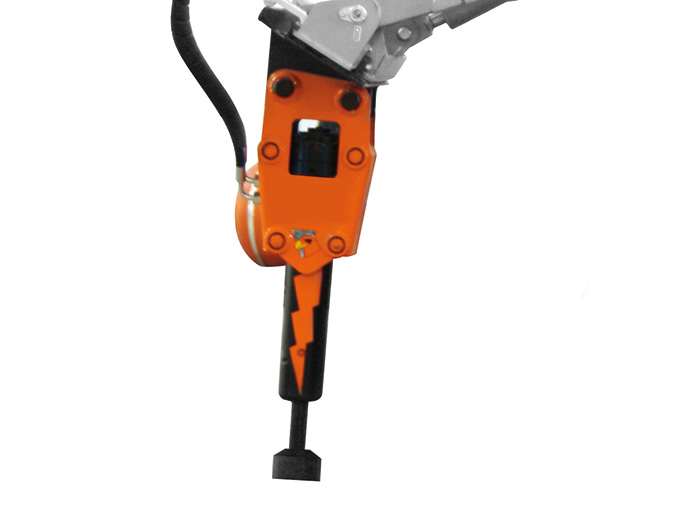

Hydraulic pile hammer Hydraulic system 15–30 l/min Engine weight kg 60

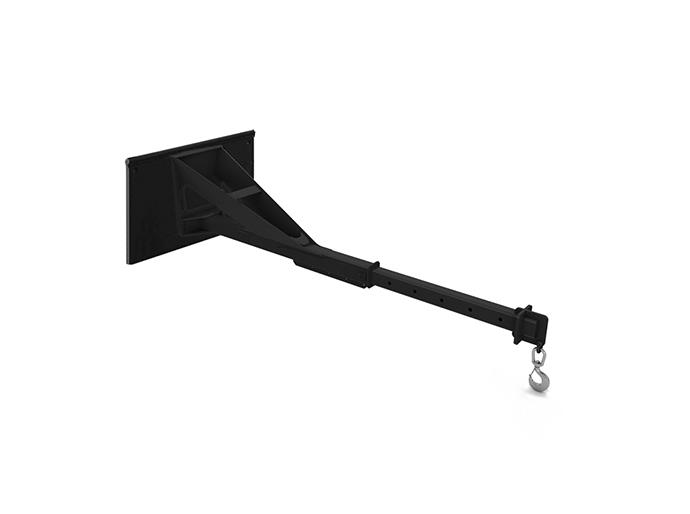

Jib boom mm 2500 – weight kg 90 Lifting capacity kg 220

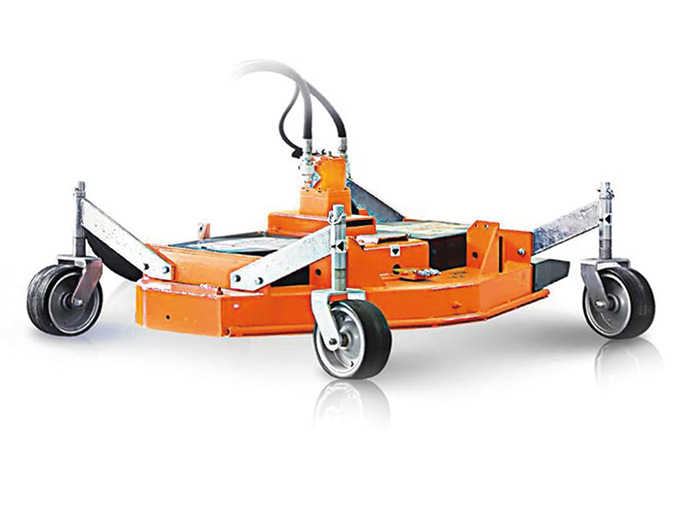

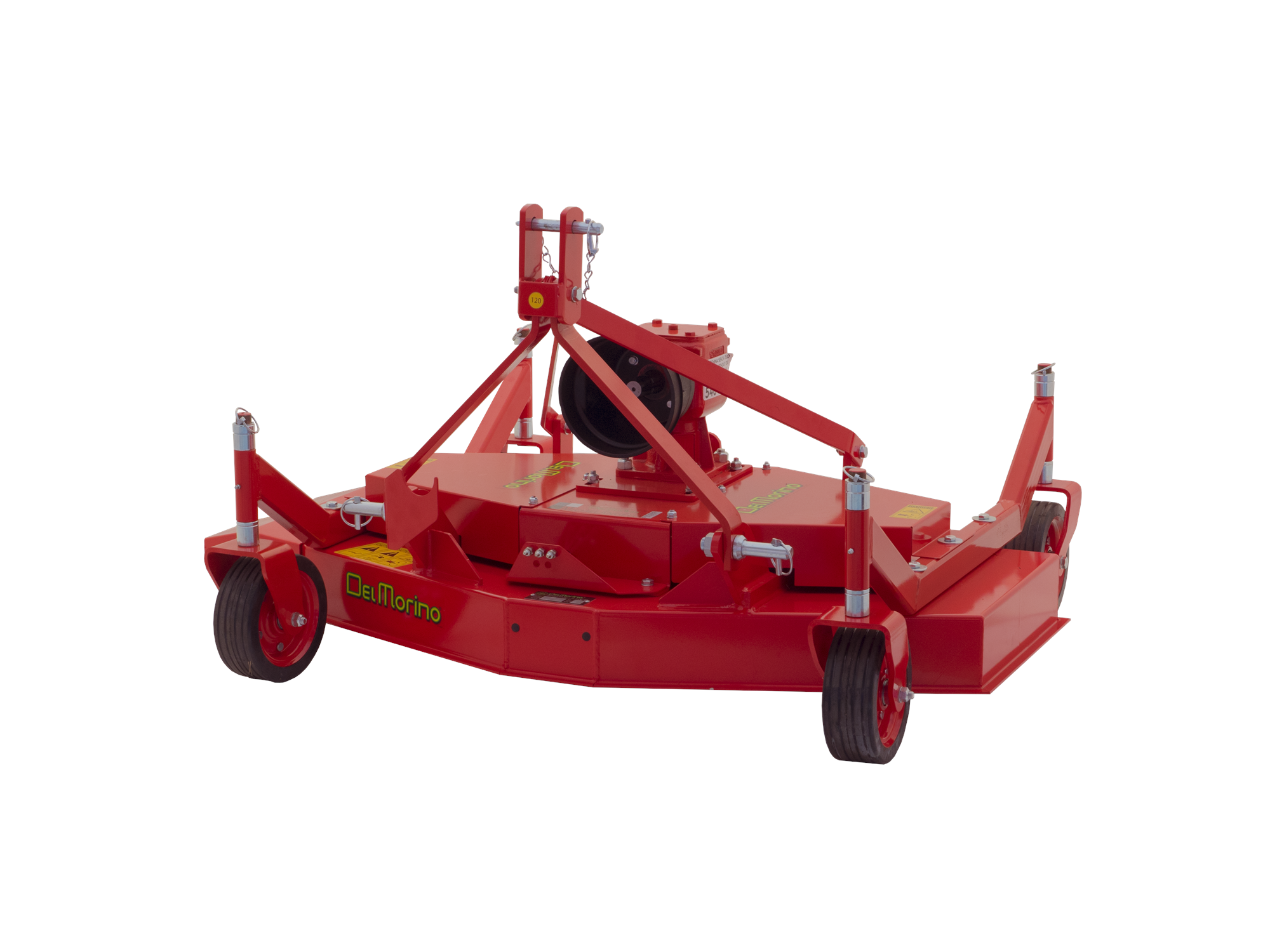

Lawn mower mm 1200 – weight kg 170 mm 1350 – weight kg 185 mm 1500 – weight kg 200 Kit for side discharge, Kit for rear discharge, Mulching kit are optional for all models

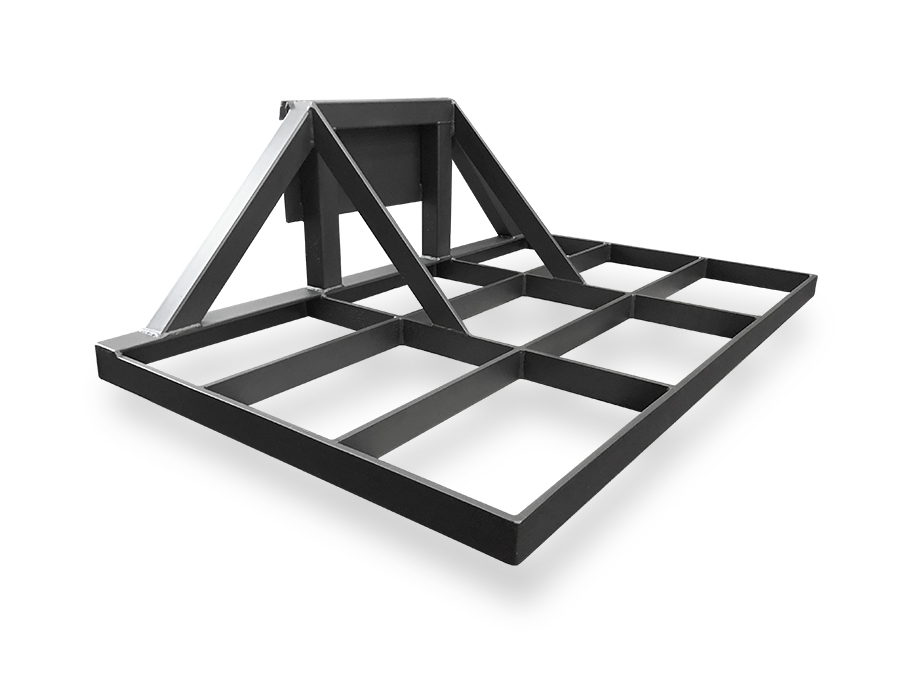

Leveler
Leveler
Logs grabbing tool mm 1000 Teeth length mm 1000 Clamps opening mm 320–1000 Weight kg 131
Low profile bucket mm 1200 – volume l 188 – weight kg 126 mm 1532 – volume l 240 – weight kg 146

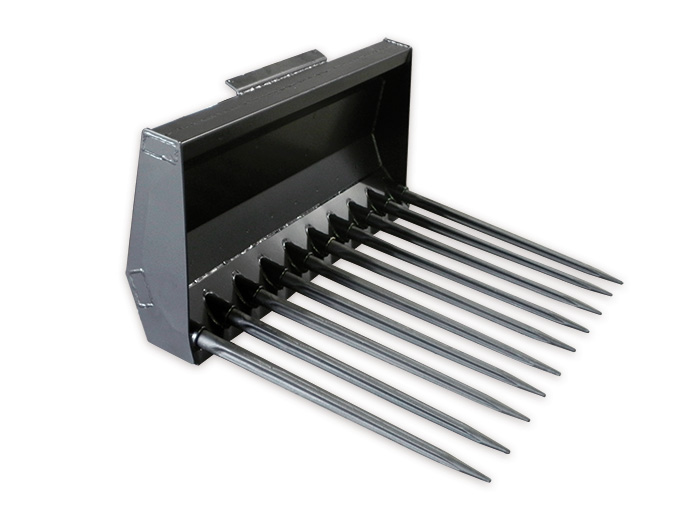

Manure fork mm 1102 – weight kg 135 mm 1400 – weight kg 160

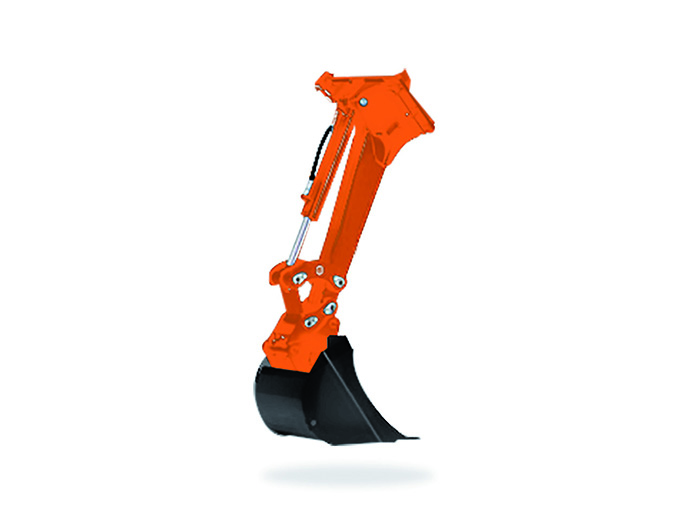

Mini excavator mm 300 – volume l 14 – weight kg 80

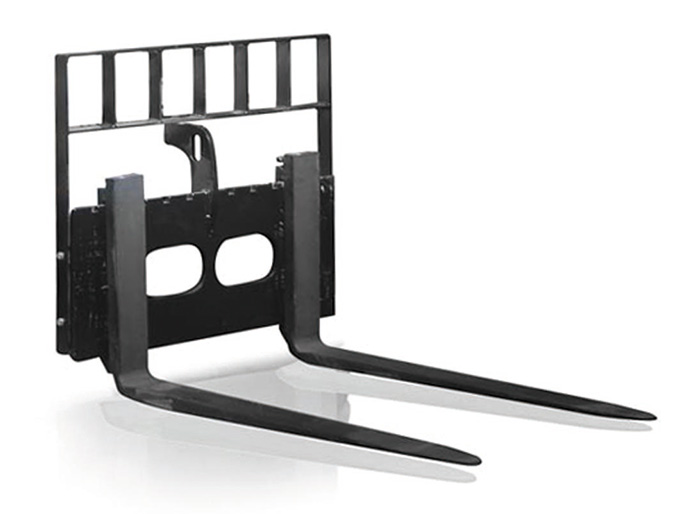

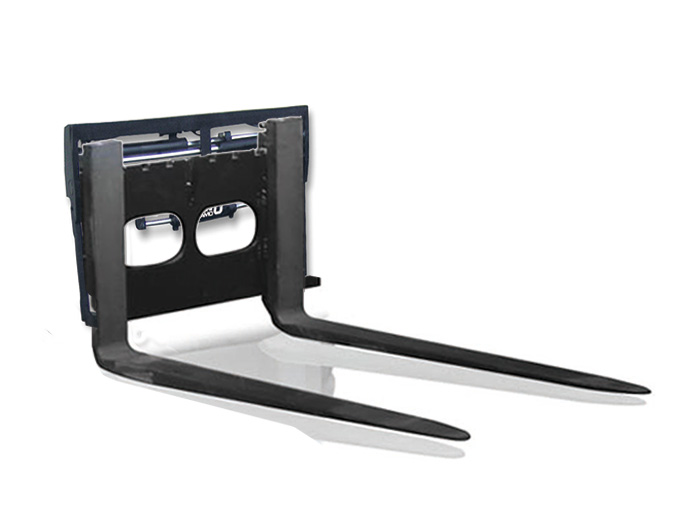

Pallet fork with shifter mm 900 – blades mm 900 – lifting capacity kg 1000 – weight kg 150 mm 900 – blades mm 900 – lifting capacity kg 1800 – weight kg 190

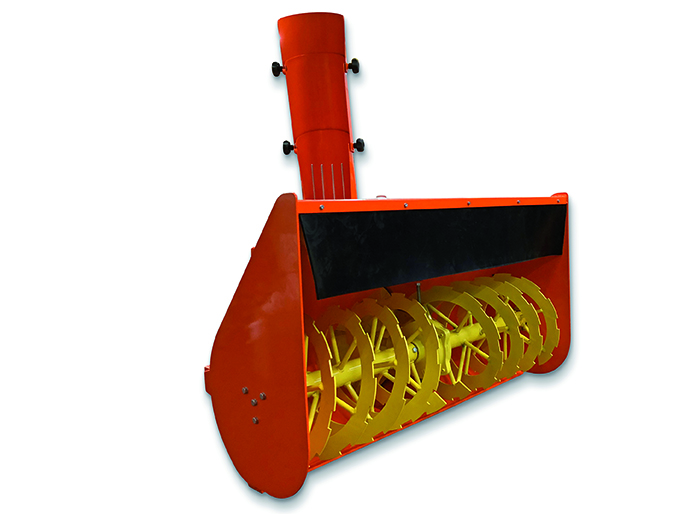

snow blower mm 1400 Swing +/- 30° 2 stages / with 5 paddles Weight kg 225

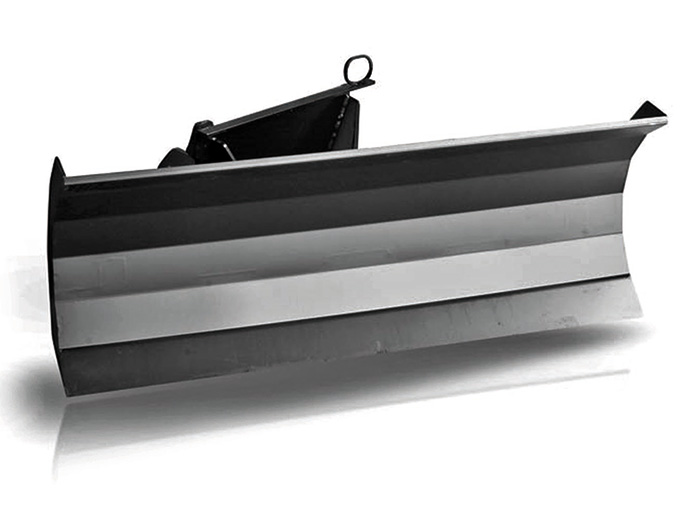

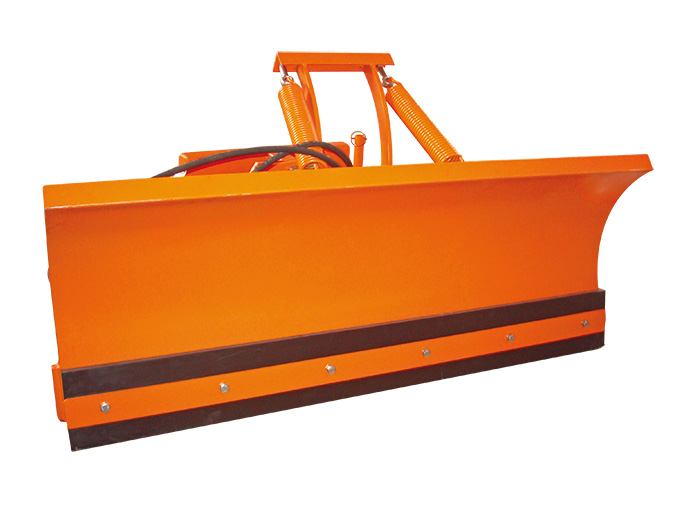

Professional snow plow mm 1800 Tilting angle +/- 32° Weight kg 260

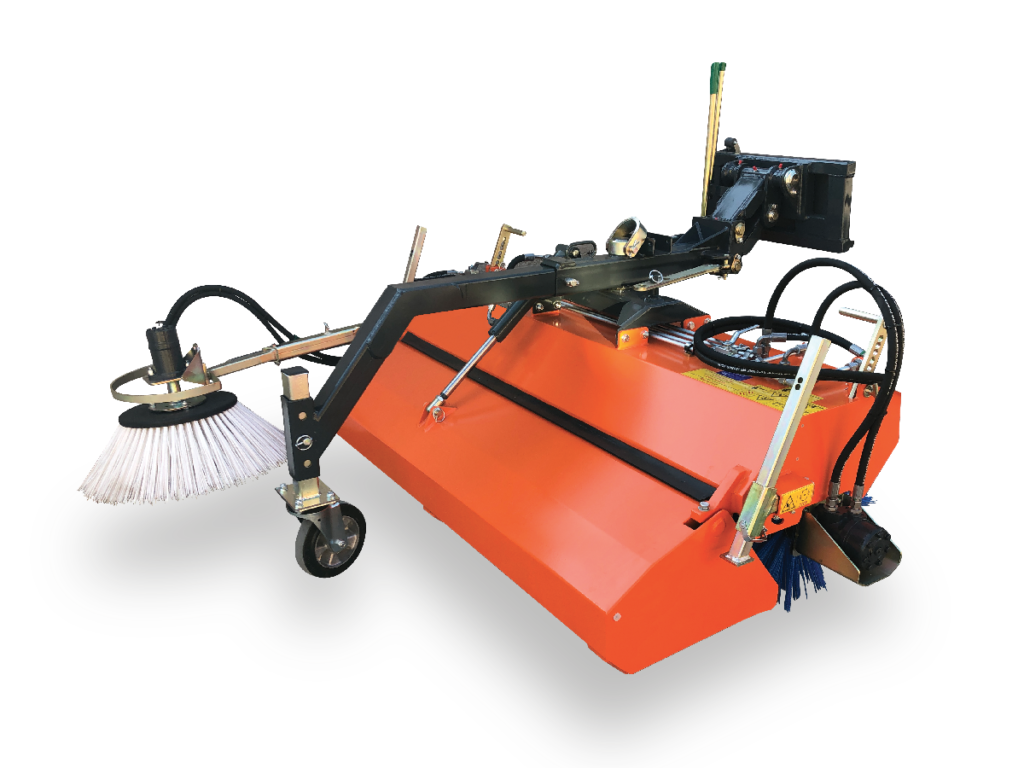

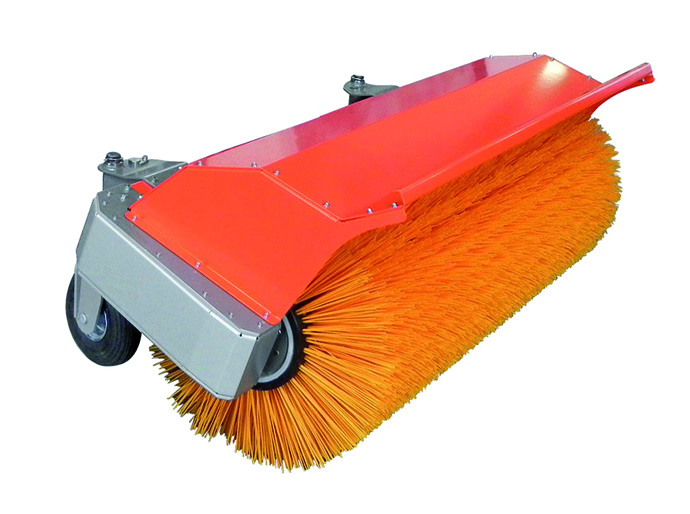

Rotary brush mm 1200 with waste box – weight kg 144 mm 1350 with waste box – weight kg 165 mm 1500 with waste box – weight kg 200 Side brush is available for all models The water kit is available too

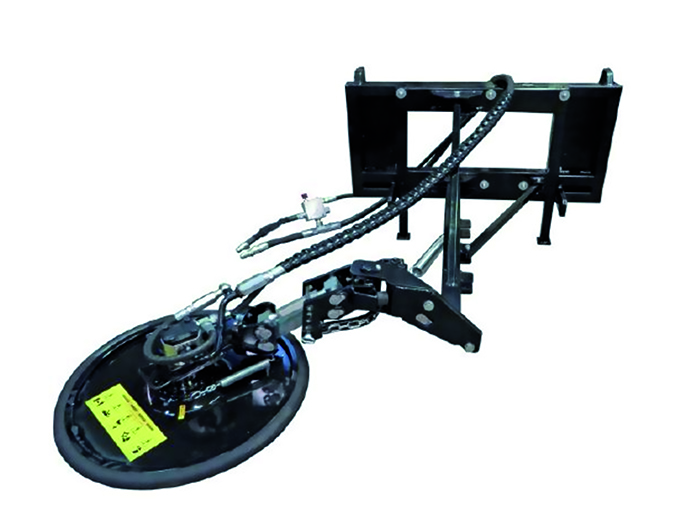

Rotary mower Ø mm 600 2400 rpm Weight kg 75

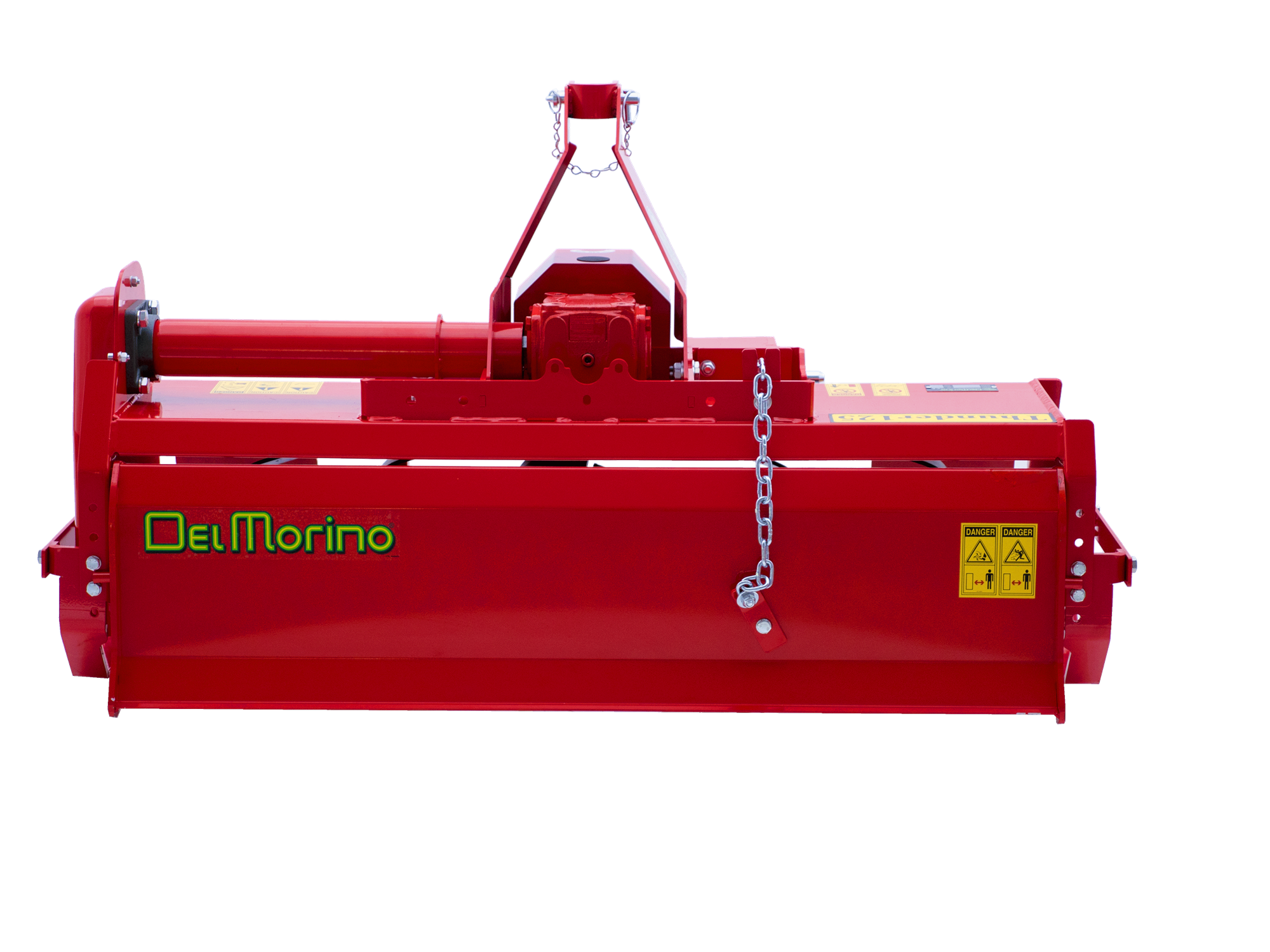

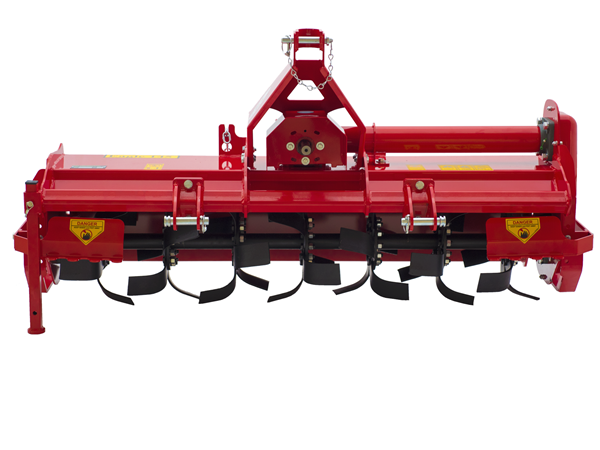

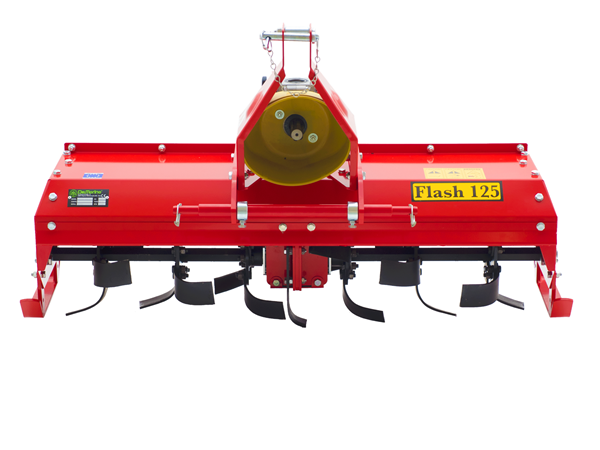

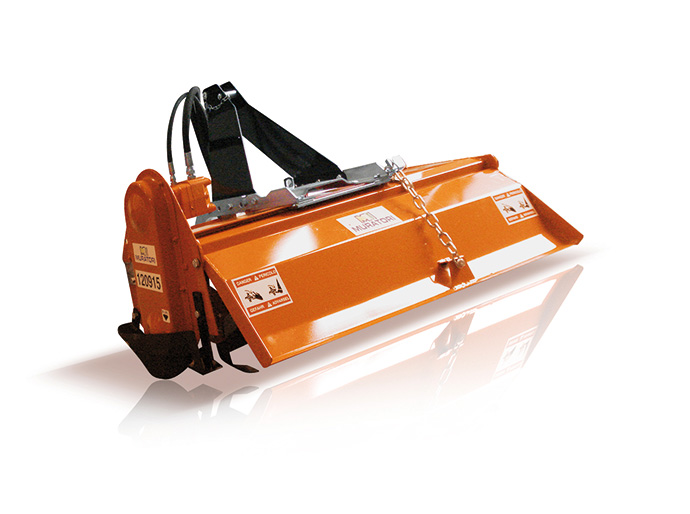

Rotary tiller mm 1050 – depth mm 150 – weight kg 100 mm 1250 – depth mm 150 – weight kg 120 (*) The machine needs hydraulic rear outlet + 3 point lifter

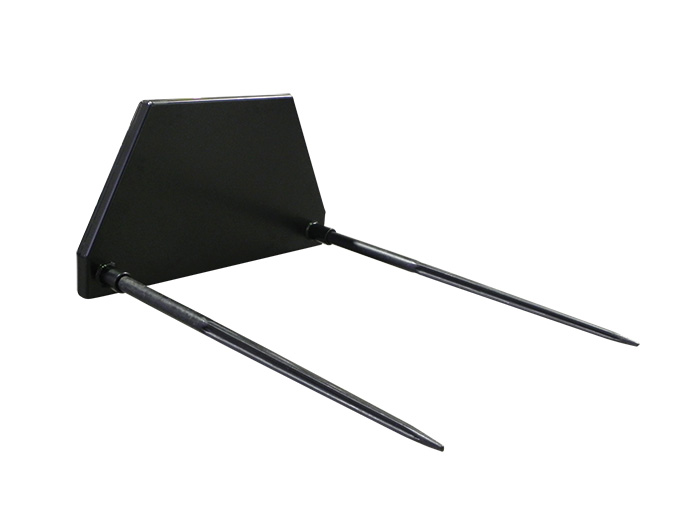

Round bale fork Teeth mm 640

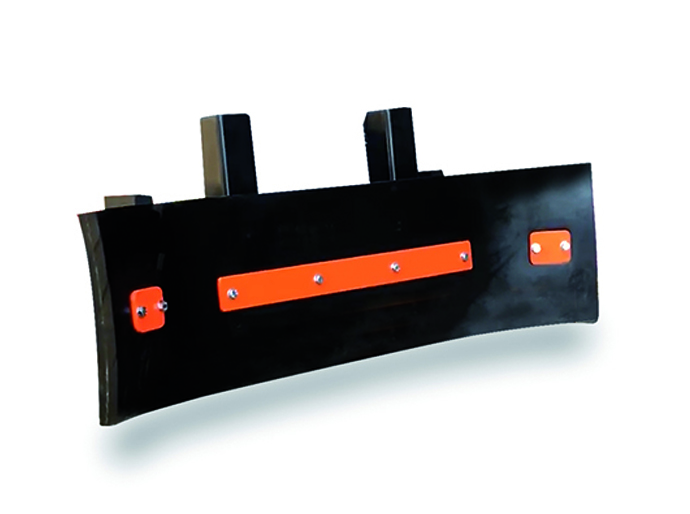

Rubber blade mm 1400 Tilting angle +/- 30° Weight kg 80

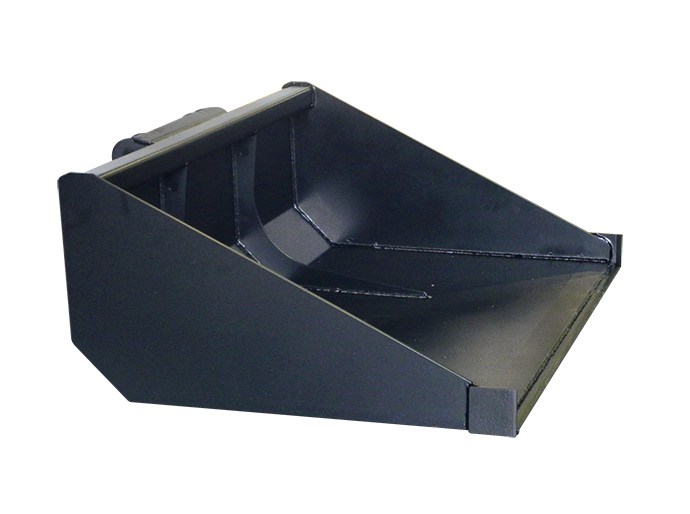

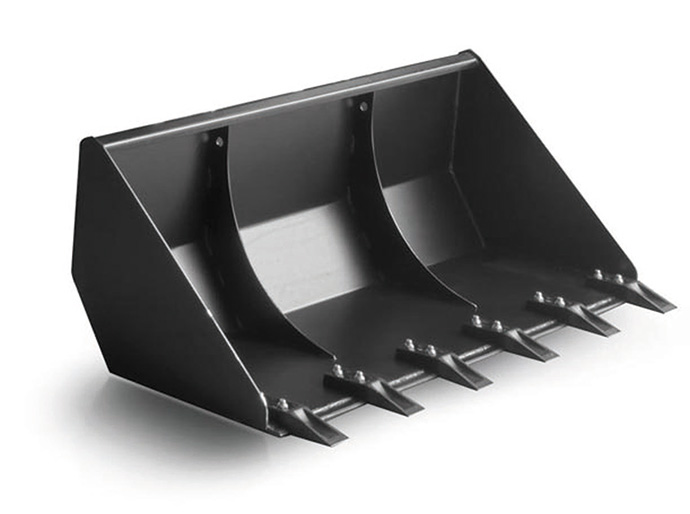

Sand Bucket mm 1200 – volume l 159 – weight kg 66 mm 1500 – volume l 200 – weight kg 78

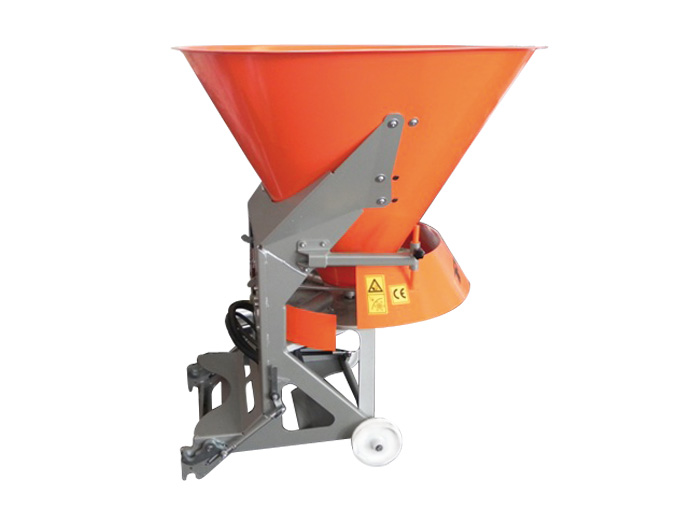

Salt / Sand Spreader Salt/sand spreader with articulated wheel agitator mm 1052 × 1000 × 1210 Volume l 200 Spreading width m 4/15 (*) Pressure 120 bar Oil flow 25 l/min Weight kg 108 (*) The machine needs hydraulic rear outlet
mm 912 Teeth mm 640 Weight kg 144

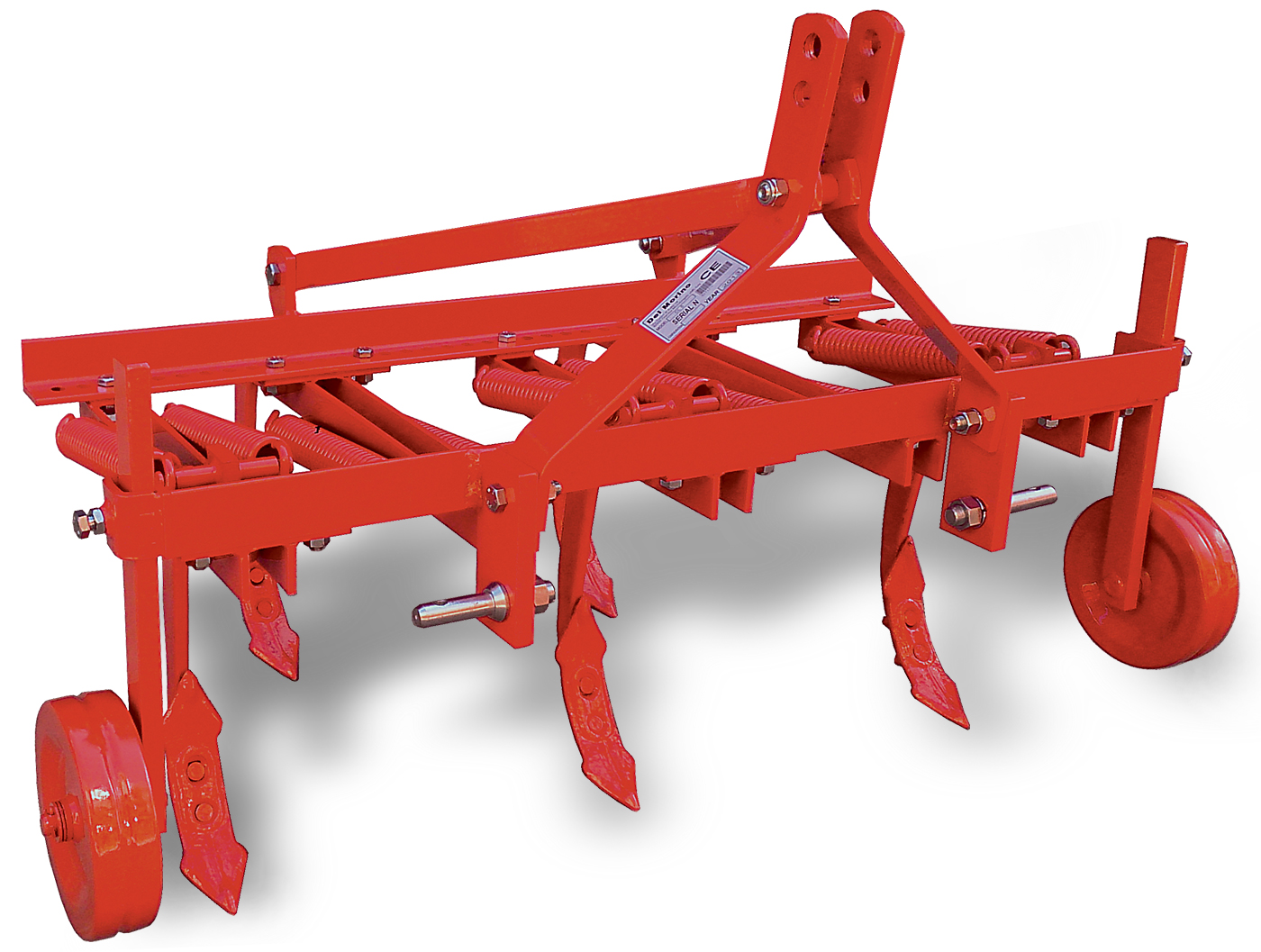

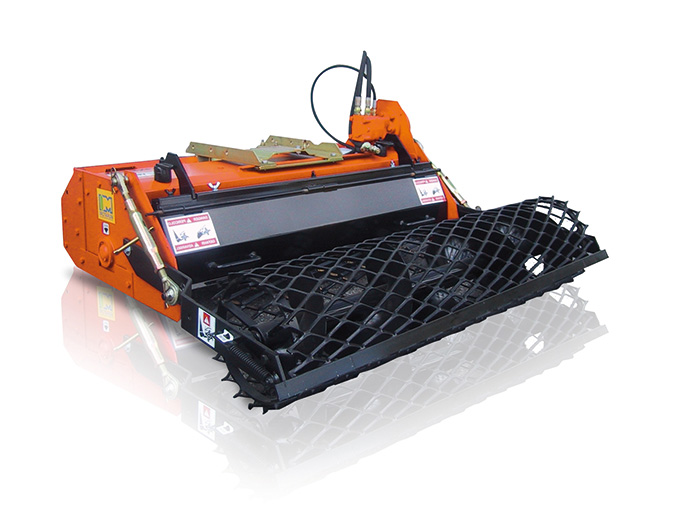

Stoneburier – Seed-drill mm 1050 (*) – weight kg 175 mm 1250 (*) – weight kg 260 (*) The machine needs hydraulic rear outlet + 3 point lifter

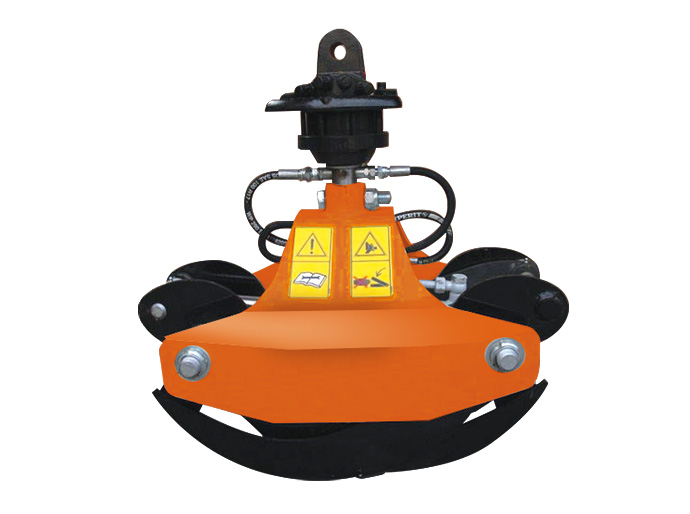

Timber grab Lifting capacity kg 1400 Max pressure 250 bar Clamp weight kg 82 Rotor weight kg 12 (*) The machine needs front auxiliary electric outlet 165W

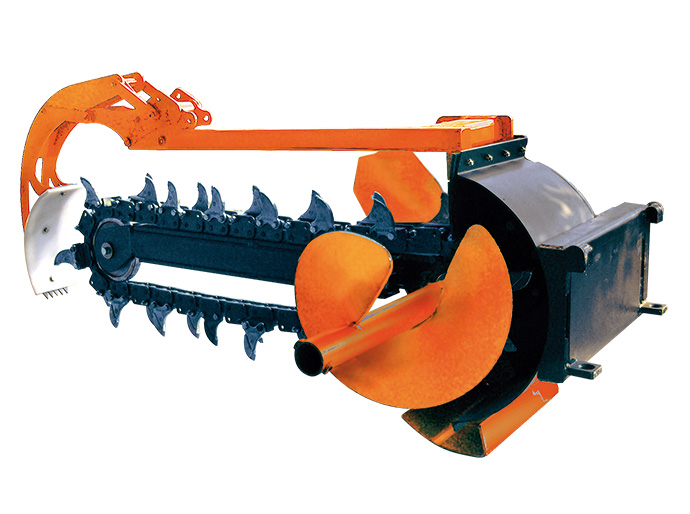

Trencher T800 Digging depth mm 800 (mm 120 width) Enlarger digging kit mm 150–200 width Trench cleaner

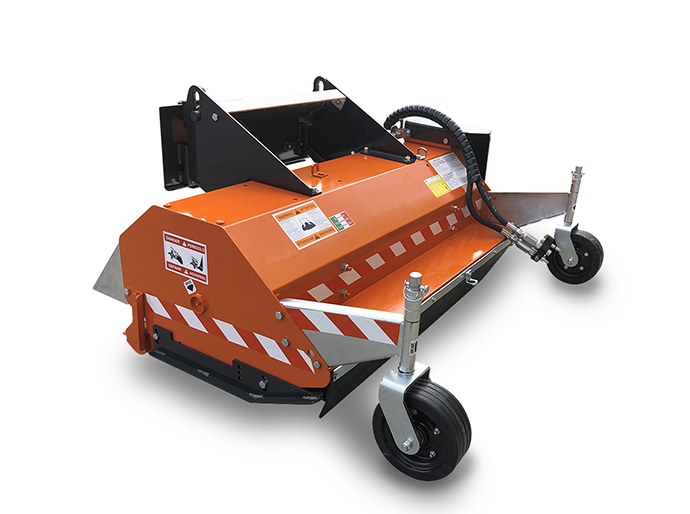

Frontal Flail Mower mm 1050 – weight kg 130 mm 1300 – weight kg 152 mm 1550 – weight kg 170 Knives for “fine cut” are available for all models Rear connection 3rd point (*) (*) The machine needs hydraulic rear outlet + 3 point lifter.

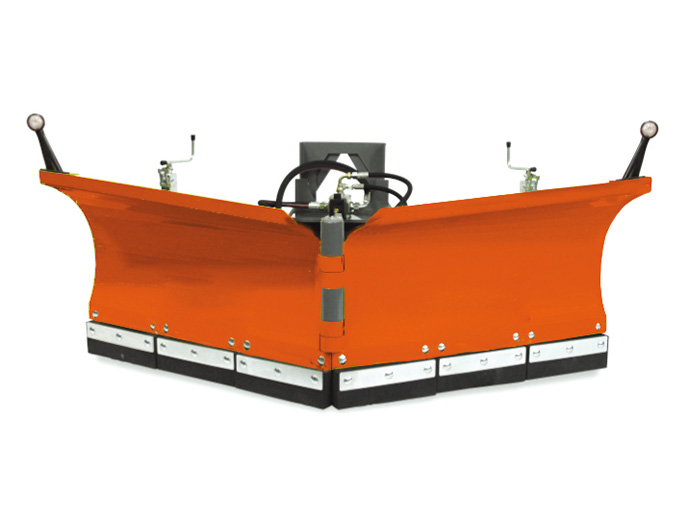

V-Plow mm 1400 – swing +/-30° – weight kg 290 mm 1600 – swing +/-30° – weight kg 340 mm 1800 – swing +/-30° – weight kg 390 mm 2200 – swing +/-30° – weight kg 430
Drills for stony soils (*) Drill length mm 1000 Ø mm 150, 200, 250 only with Auger T2

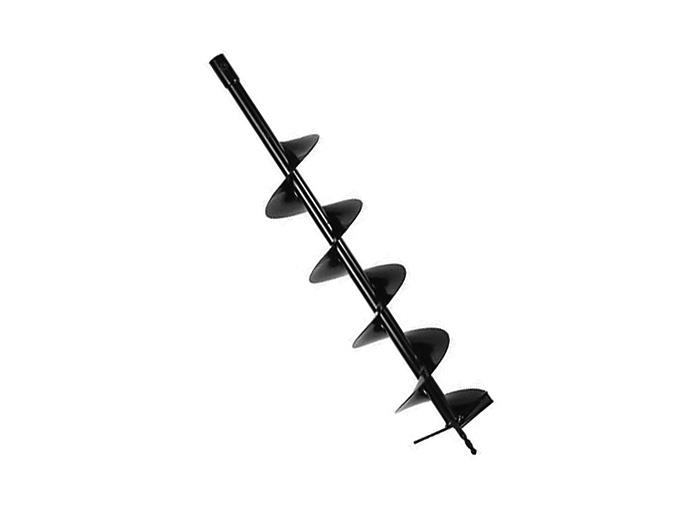

rills for clay/sandy soils Drill length mm 1000 Ø mm 100, 150, 200, 250, 300, 350, 400, 450, 500
Extension for drills for stony soils Length mm 1000 Ø mm 150, 200, 250
